Amphitheatre OLIMAR | Membrane | Uruguay

\""
1
2
3
4
5
6










General information
Location address Treinta y Tres
Location country Uruguay
Function of building Theatres & cinemas
Type of application of the membrane covering
Primary function of the tensile structure Rain protection
Sun protection
Degree of enclosure Open structure

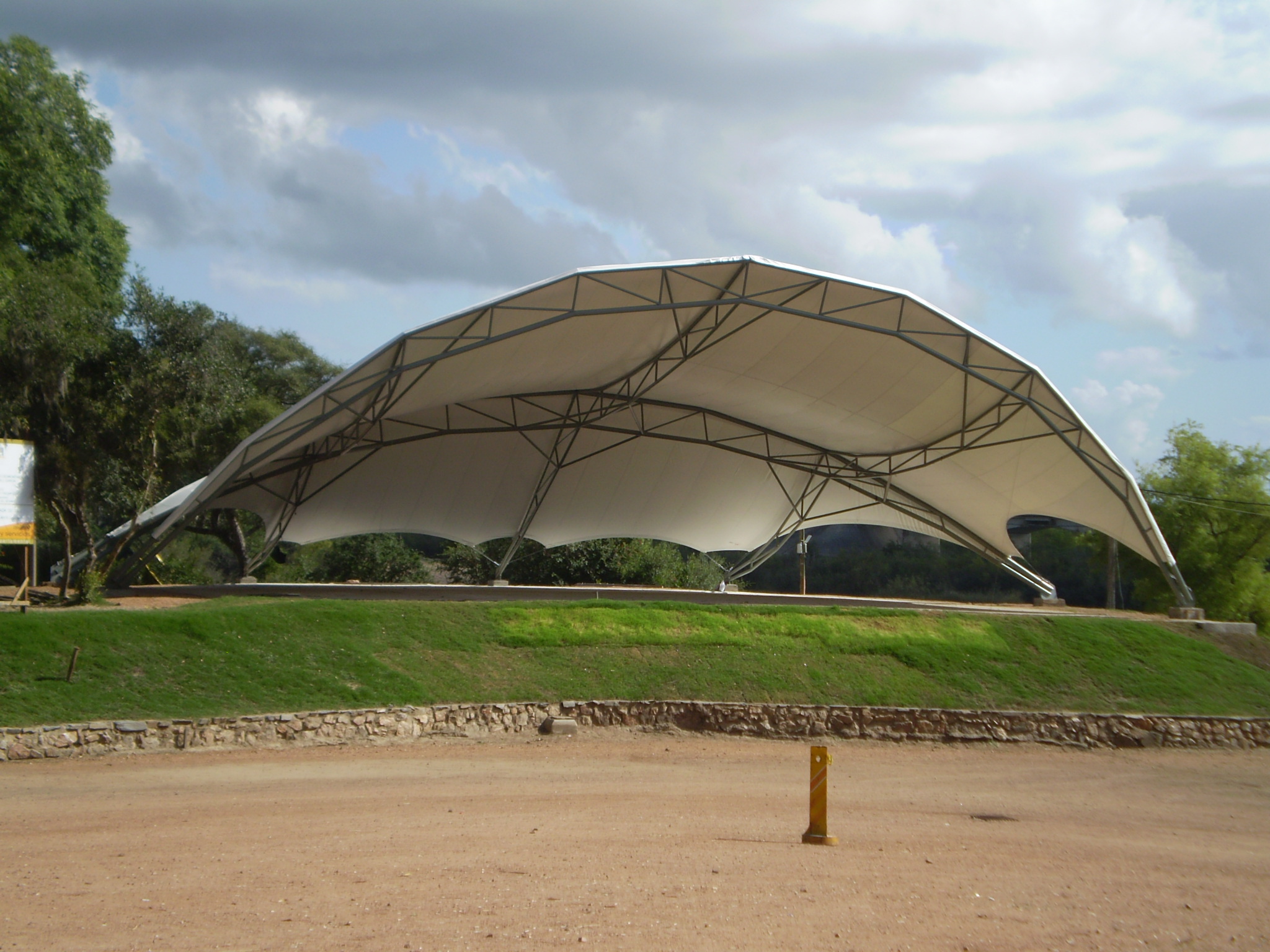

Short description of the project Originally there was a metal amphitheatre that was destroyed in a storm wind. The idea was to rebuild it with a more functional roof for the scope. The new construction is a membrane tensioned over 2 longitudinal reticulate arches, with 28m span each one, stabilized by 3 structural lines anchored to the floor and giving stability to the entire roof. The membrane is attached to the structure with ropes.

The objectives of the new roof are the following:
1. The need for a special design that is more suitable for the amphitheatre, that works better acoustically and that achieves best visual effects of the show, either day or night through the lighting of the shows;
2. Low building costs;
3. Rain protection;
4. Easy installation and the need for a demountable structure.

Finally was chosen for a prestressed PVC-membrane on the basis of following two reasons:
1. It strictly complies with all the objectives;
2. When compared to other traditional systems such as metal or concrete construction, these traditional systems do not meet all the requirements, not offering the aesthetic and formal opportunities PVC membranes can offer.

The roof has been designed respecting the minimum height to develop shows, and generating a membrane with double curvature to encourage the good diffusion of the sound for the spectators.
The structure and the membrane were designed at the same time.
The metal structure is made of arches in round pipes 5" and 2" and the anchorage in Platinum in 1".
The membranes are made of polyester fabric (PES HT 1100dtex, 5x5 threads per cm (12 threads per inch)) with PVC coating, UV protection on the outside, a weight of 800gr/m2 (230oz/sqyd) and a breaking load limit of 30daN/cm. (167lbs/inch). The prestressing of the membrane has being done manually with a rope tied to the structure.
Everything was manufactured in the workshop in 30 days and the assembly took place in 10 days.
The objective sought after by the roof was achieved to perfection, accomplishing an enjoyable space for holding shows.
Misc. project details
Duration of use
Temporary or permanent structure Permanent
Material of the cover
Cable-net/Textile/Hybrid/Foil Fabric
Material coating PVC
Main dimensions and form
Covered surface (m2) 355
Form of a single element Anticlastic
Involved companies
Architects Roberto Santomauro & Patricia Pinto
Engineers Marabella & Pedoja
Contractors Sobresaliente ltda
Editor
Editor Evi Corne
