Dresden’s castle: Cushion roof over the little courtyard | Pneu | Germany

\""
1
2
3













General information
Homepage www.form-TL.de
Location country Germany
Function of building Exhibition
Type of application of the membrane covering
Primary function of the tensile structure Daylight gains
Degree of enclosure Hybrid structure
Climatic zone Temperate - cold winters and mild summers
Number of layers double-layer

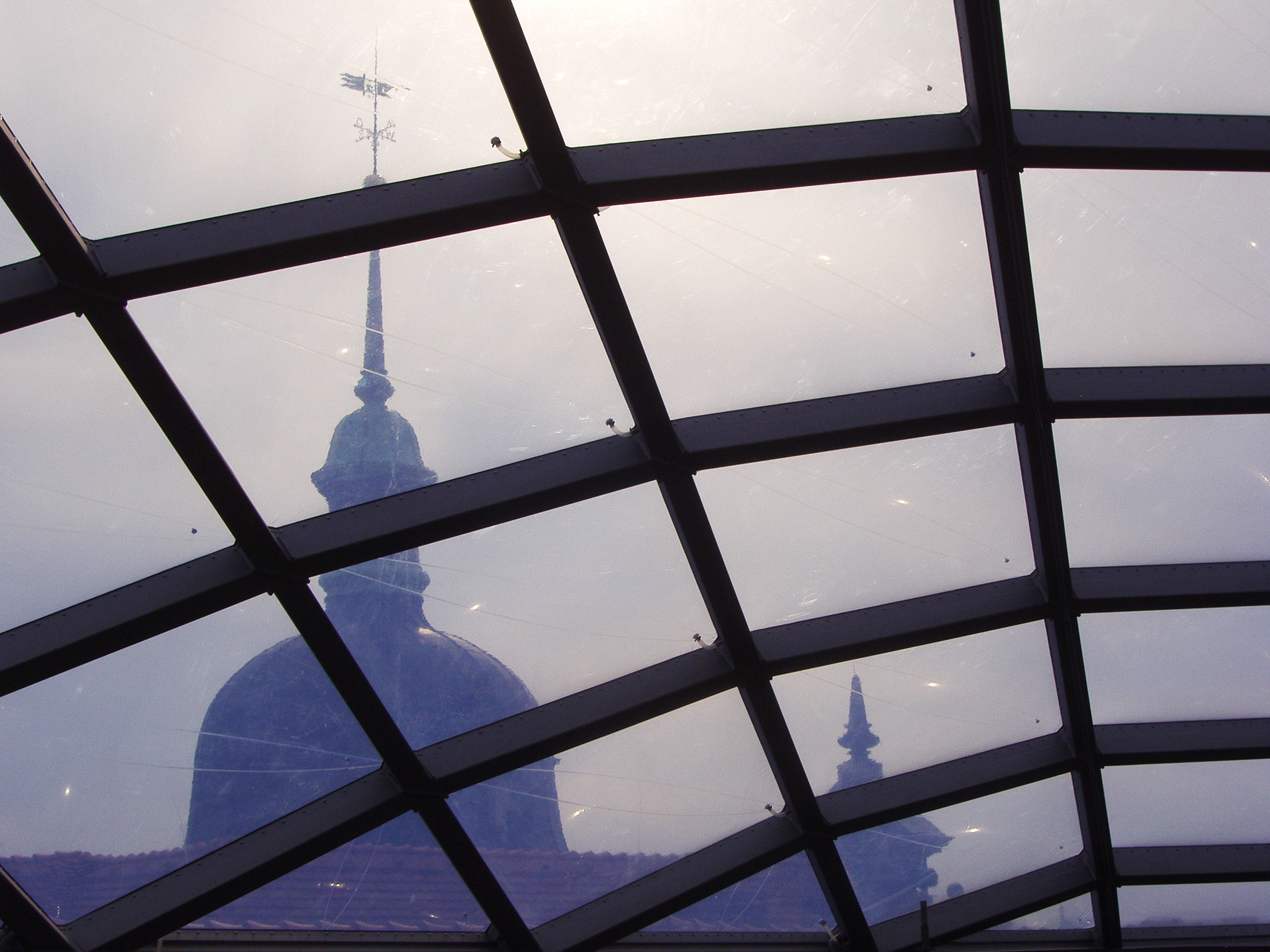

Short description of the project During the reconstruction of Dresden’s castle the small courtyard got a 41x25 m sized cupola.

This consists of a bending-stiff grid made of rectangular profiles and 261 foil cushions with an edge length up to 2,8m and a diagonal length up to 4,1m.

So a foyer develops suffused by light for the nearby art exhibitions.

Cover area:
1.092 m²
Double layer cushions:
ETFE with 250 my
Misc. project details
References DOMUS 725 / 1991
Mobile Stages
Acier.Stahl.Steel 10/1976
Duration of use
Material of the cover
Cable-net/Textile/Hybrid/Foil Foil
Main dimensions and form
Involved companies
Engineers form TL ingenieure für tragwerk und leichtbau gmbh
Suppliers Ceno Tec
Editor
Editor Bernd Stimpfle
