Garden Tent De Montil | Membrane | Belgium

\""
1
2
3
4
5
6
7
8
9







General information
Location address Moortelstraat 8 1790 Affligem
Location country Belgium
Name of the client/building owner De Montil
Function of building Entertainment & recreation
Type of application of the membrane covering
Degree of enclosure Open structure
Climatic zone Temperate - cold winters and mild summers
Number of layers multi-layer

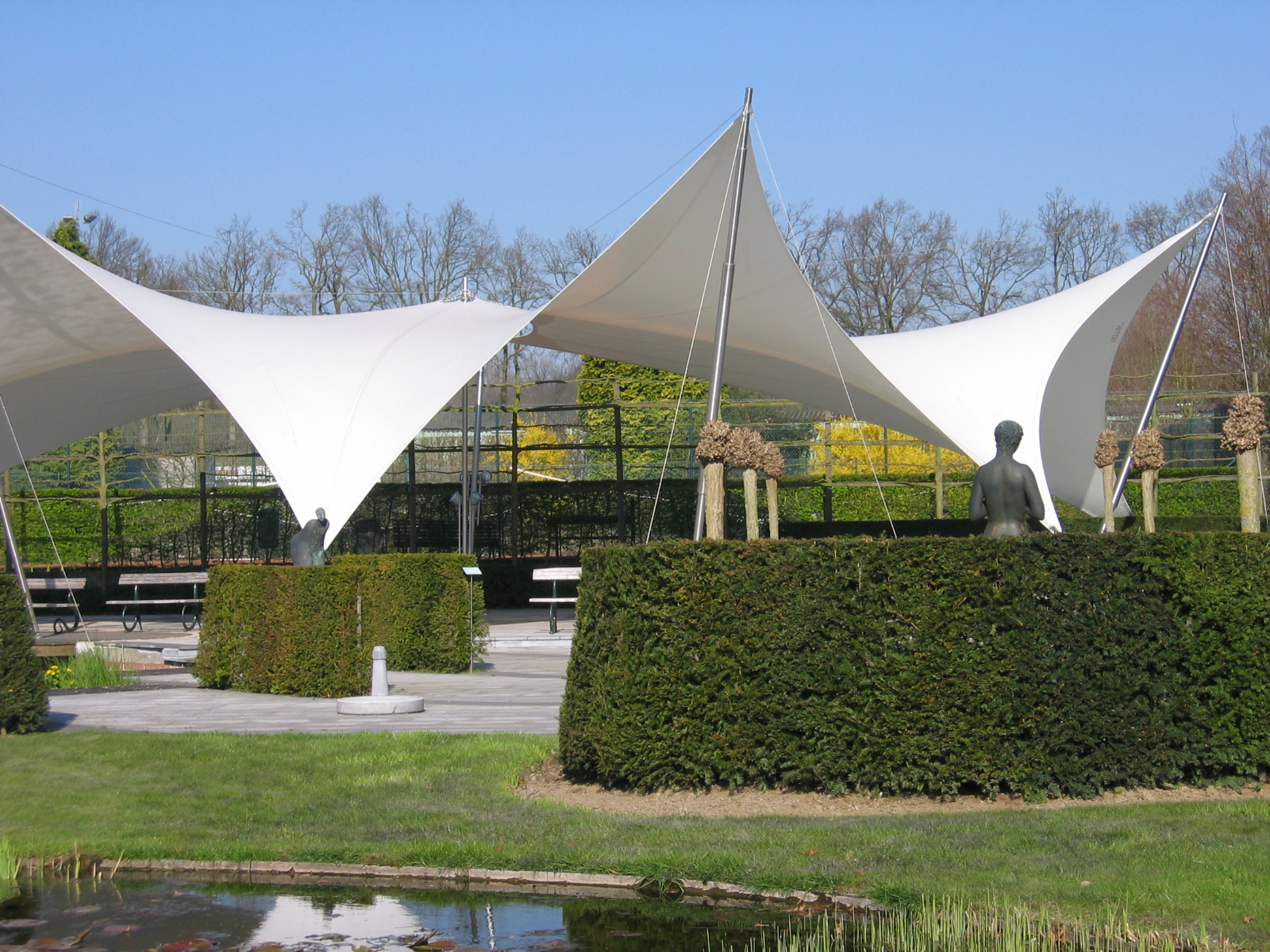

Short description of the project Open shelter with along the boundary high and low points. In the center the structure is supported by a central mast. Belts reinforce the roof from the central point to the low and high boundary points.
The central mast is stabilised by the chain connections to the roof and an additional mast.
Misc. project details
Duration of use
Temporary or permanent structure Temporary
Material of the cover
Cable-net/Textile/Hybrid/Foil Fabric
Type (code) Polyester/PVC
Main dimensions and form
Total length (m) 18
Total width (m) 10
Maximum height (m) 8
Maximum free span (m) 9
Form of a single element Anticlastic
Involved companies
Architects Velum
Contractors Velum
Editor
Editor Marijke Mollaert
