School in Bobingen | Membrane | Germany

\""
1
2
3
4












General information
Location address Bobingen
Location country Germany
Function of building Education
Degree of enclosure Open structure

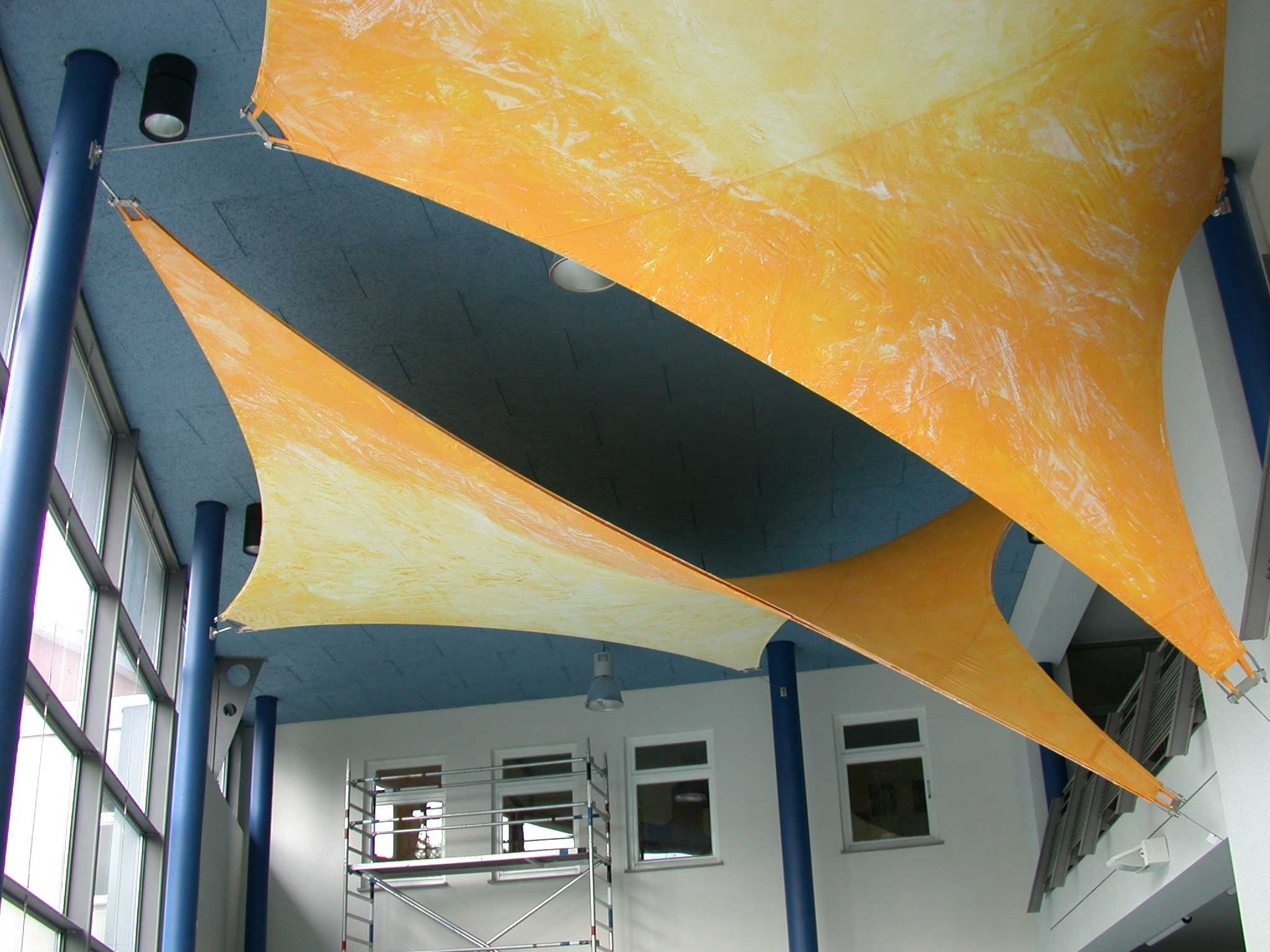

Short description of the project Within the new design and the construction of the extension of a school in Bobingen a membrane construction was used in the concourse hall for aesthetic and acoustic reasons.
The school hall had a double-storey volume of space enclosed by a fully glazed curtain wall on the outside and solid floors, therefore the acoustic situation was very poor. It was decided to install a floating acoustic barrier, consisting of double layer membrane with acoustic sandwich in the middle. A non coated polyester fabric with fire retardency class B1 has been used.
Misc. project details
Duration of use
Temporary or permanent structure Permanent
Material of the cover
Cable-net/Textile/Hybrid/Foil Fabric
Material Fabric/Foil Polyester
Main dimensions and form
Form of a single element Anticlastic
Involved companies
Editor
Editor Marijke Mollaert
