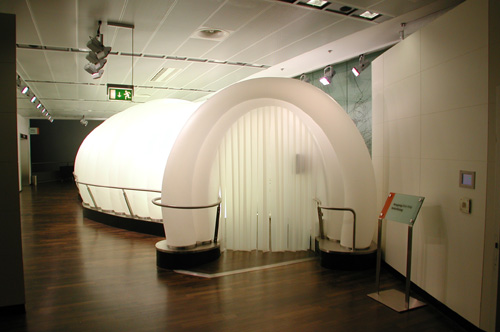

Project Nebelgang | 2001 | Pneu | Germany previous next 1 2 3 4 5 6 7                 General information Homepage www.tapweb.de Location address Autostadt Wolfsburg Location country Germany Year of construction 2001 Name of the client/building owner Autostadt Wolfsburg GmbH Degree of enclosure Fully enclosed structure Climatic zone Temperate - cold winters and mild summers Short description of the project This sculpture is a radial arch structure showed at the "Autostadt" in Wolfsburg. Totally, 37 completely different pneumatic stabilized arches are placed together and form a curved and irregular tunnel. The inflated PVC tubes are clamped to the special floor decking at the ground.The whole structure is fit out with additional technical, light and fog effects. Air looks on both side's keeps the fog inside. Misc. project details Duration of use Temporary or permanent structure Permanent Material of the cover Cable-net/Textile/Hybrid/Foil Foil Type (code) Opera Foil (translucent) Material Fabric/Foil Polyester Material coating PVC Main dimensions and form Total length (m) 20 Total width (m) 3 Maximum height (m) 4 Maximum free span (m) 3 Involved companies Architects Bellprat Assoc. AG büro für leichtbau - lightweight design, Ayrle Architekten Engineers büro für leichtbau - lightweight design, Tritthardt Ingenieure Contact persons Jörg Tritthardt Editor   Knowledgebase Database Projects Cable-net Hybrid Membrane Pneu Other Student projects Companies Architects Contractors Engineers Suppliers Literature Books Information folders Journals Search Advanced search My searches Add new project Library Links Order TensiNet Publications
