Airhall De Lier | Pneu | Netherlands

\""
1
2
3
4












General information
Location address De Lier
Location country Netherlands
Name of the client/building owner Tennisvereniging 't Loo
Function of building Sport
Primary function of the tensile structure Rain protection
Wind protection
Degree of enclosure Fully enclosed structure
Number of layers mono-layer

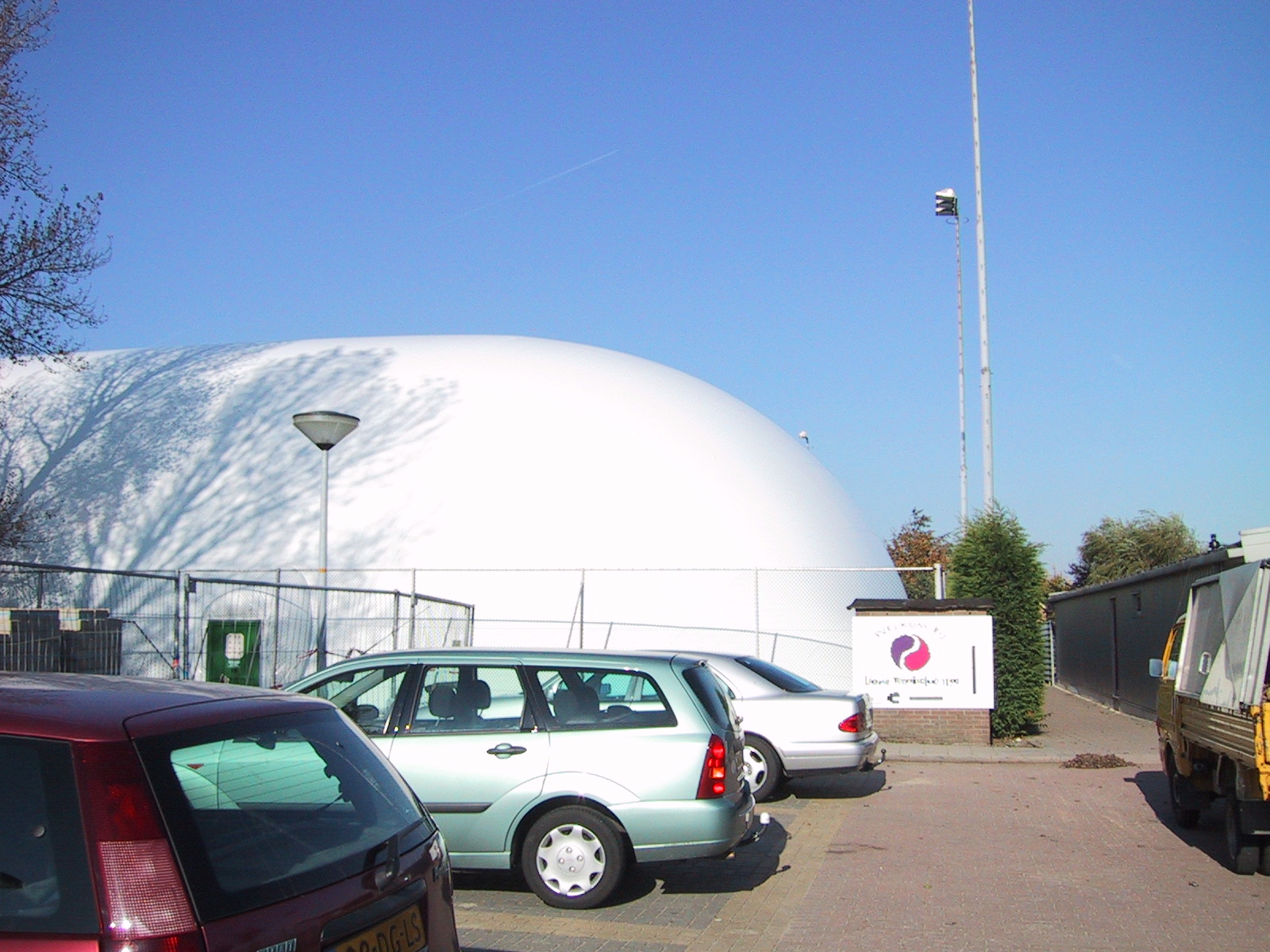

Short description of the project An airhall of 50 x 36 meters covering three tenniscourts in De Lier. Inner pressure under normal stationary conditions is 2 mbar (= 0.2 Pa).
Misc. project details
Duration of use
Temporary or permanent structure Temporary
Convertible or mobile Mobile
Design lifespan in years 21-30
Material of the cover
Cable-net/Textile/Hybrid/Foil Fabric
Type (code) II
Material Fabric/Foil Polyester
Material coating PVC
Weight (g/m2) 900
Main dimensions and form
Covered surface (m2) 1750
Total length (m) 50
Total width (m) 35
Maximum height (m) 12
Maximum free span (m) 50
Form of entire structure Synclastic
Involved companies
Engineers Tentech BV
Editor
Editor Rogier Houtman
