Roof of a laboratory, TU Eindhoven | Hybrid | Netherlands

\""
1
2
3
4
5











General information
Location address Eindhoven
Location country Netherlands
Function of building Laboratories & research centres
Primary function of the tensile structure Daylight gains
Rain protection
Space defining elements
Wind protection
Degree of enclosure Fully enclosed structure
Climatic zone Temperate - cold winters and mild summers
Number of layers mono-layer

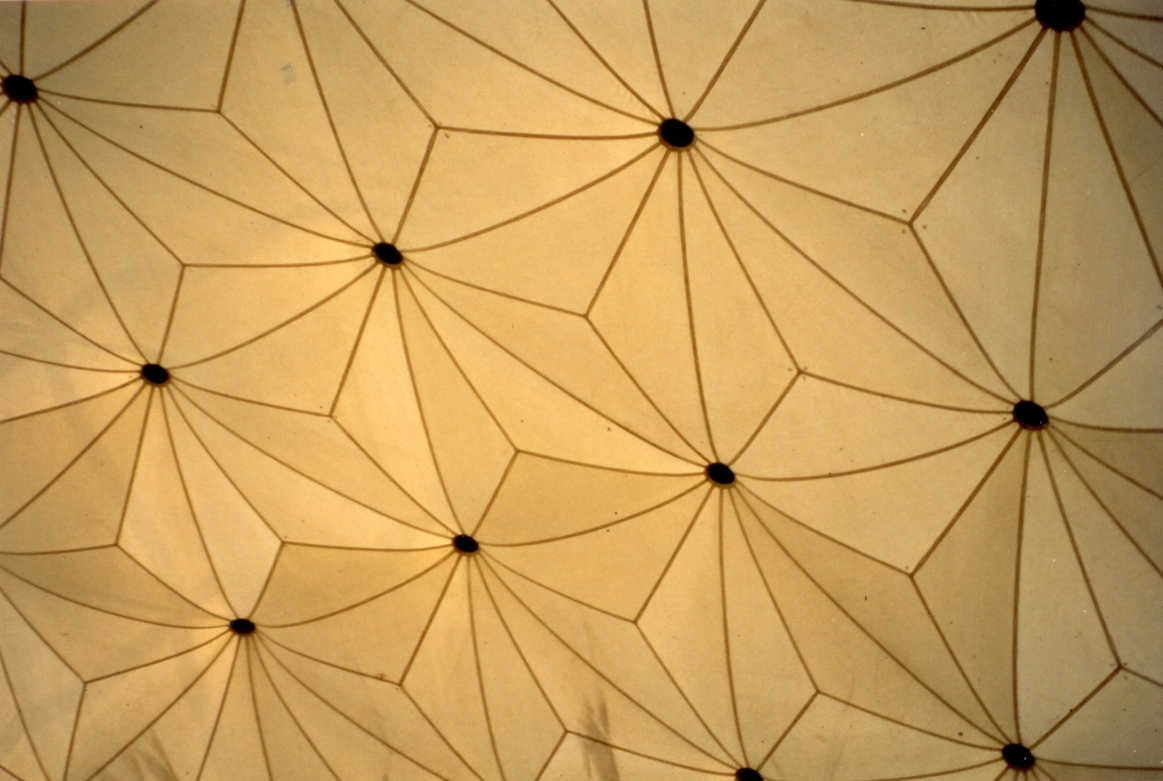

Short description of the project Membrane tensioned in a geodesic dome (steel bars, Adjustable Lattice Connector)
Misc. project details
Duration of use
Temporary or permanent structure Temporary
Material of the cover
Cable-net/Textile/Hybrid/Foil Hybrid
Material Fabric/Foil Polyester
Material coating PVC
Main dimensions and form
Covered surface (m2) 3000
Total length (m) 52
Total width (m) 52
Maximum height (m) 15
Maximum free span (m) 52
Form of a single element Anticlastic
Form of entire structure Synclastic
Involved companies
Architects Huisman
Engineers Huisman, Wim, TU Eindhoven, vakgroep Konstructief Ontwerpen
Editor
Editor Marijke Mollaert
